3D PRINTING / PART REPLICATION
Delineator caps,
3D printed.
From an existing part
to a printed replica.
We were asked to replicate and 3D print caps for delineators. These photos show the cap we printed alongside the original reference, from two angles.
LEFT Our 3D-printed capRIGHT Original reference cap

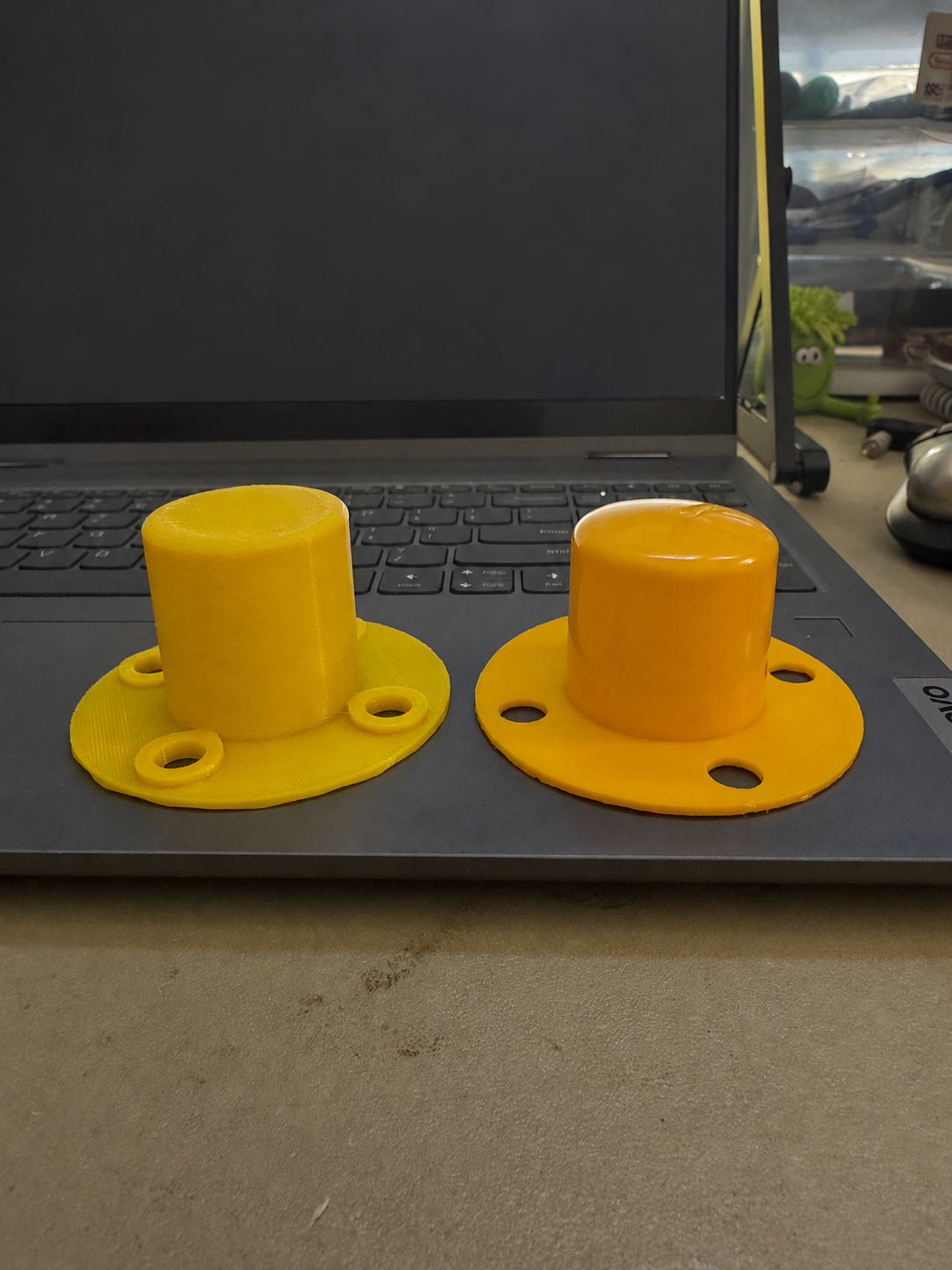

Angled view
Our printed cap is on the left; the original reference is on the right. This angle shows the cap profiles and bases.
Top view
The same pair from above, showing the cap tops and mounting holes.
Laptop screen contents have been hidden in the angled-view photo.
